Cruze Bathrooms Cruze Round Concealed Dual Thermostatic Shower Valve With 200mm Head + Round Curved Arm

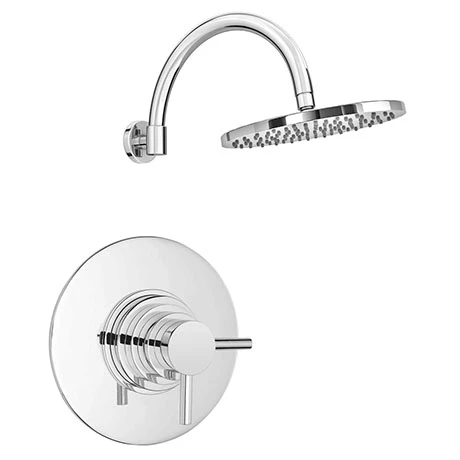

Cruze Round Concealed Dual Thermostatic Shower Valve with 200mm Shower Head + Round Curved Arm

The super sleek cruze round concealed thermostatic shower valve with 200mm shower head and round curved arm offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.

Shower valve has the added safety benefit of a built in anti-scald device should the cold water supply fail. The modern Cruze dual concealed thermostatic shower package adds a touch of sophistication and style in any bathroom.

Shower Valve Details

• Diameter: 193mm
• Type: Dual Concealed Shower Valve
• Handle Type: Lever
• Style: Modern
• Colour/Finish: Chrome
• Material: Solid brass
• Operates a single shower accessory:  1 Outlet
• Wall Mounted
• Round Back Plate
• Smooth Operation with Quality Components
• Water Pressure: 0.5 bar to 5 bar
• Anti-scald technology
• 150mm between pipe inlet centres
• Inlets: 15mm
• Outlets: 1/2″ BSP
• Suitable for modern pressurised plumbing systems.
• Flow rate of twin concealed valve:
• 0.5 bar-8.5L/M
• 1 bar-12.5L/M
• 2 bar-16.5L/M
• 3 bar-19.5L/M
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

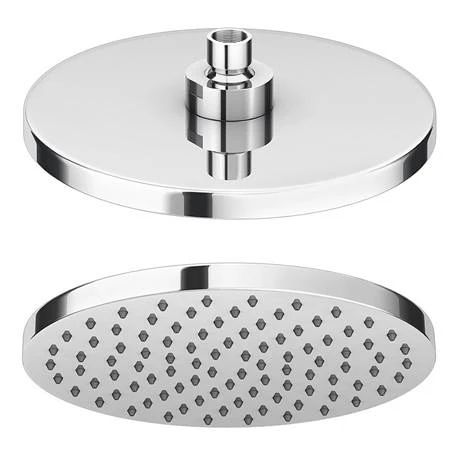

Shower Head Details

• Dimensions: 200mm diameter
• Style: Modern
• Colour/Finish: Chrome
• Material: ABS Plastic
• Shape: Round
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• Shower head chrome plated plastic, not metal.

Curved Wall Mounted Shower Arm Details

• Arm length: 303mm
• Height: 180mm
• Width: 60mm
• Colour/Finish: Polished Chrome
• Material: Brass
• Style: Modern
• Shape: Round
• Wall Mounted, Curved Design
• Connection: G1/2″

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

All measurements are approximate

Images are for illustration purposes only

Comprises

(1) Cruze 200mm Round Shower Head + Swivel Joint
(1) Curved Wall Mounted Shower Arm – Chrome
(1) Cruze Dual Concealed Thermostatic Shower Valve with Round Back Plate – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
